WARNING: It was informed by the developer of Spad (c0nnex), upgrading from MSFS PMDG Update 3.0.24 for the 737-100 intentionally breaks the SDK integration. As there is no information about the new SDK, it is currently not recommended to apply the update, if you are using any of the SDK-Features (PMDGNG3-Events or PMDGNG3-Data). There is no workaround , and there is nothing you or spad can do about that.
This is a preset to be used in Logitech/Saitek panels (Multi Panel, Switch Panel and Radio Panel), through the SPAD.neXt software. The entire configuration was made to be used, preferably, in the B737-700 of PMDG .
Place the file " PMDG 737 - Logitech Panels (current version) " in the SPAD.neXt profile folder.
Default location: C:\Users\[seu nome]\Documents\SPAD.neXt\profiles
ATTENTION: Here's how to get the complete material of the PMDG 737 MSFS running on SPAD.neXt:
1. 737 in MSFS must have been loaded beyond "ready to fly" at least once and exited again.
2. Exit MSFS
3. in file browser open
%APPDATA%\Microsoft Flight Simulator\Packages\pmdg-aircraft-737\work
5. Add to end of 737_Options.ini
6. start MSFS and load 737 ,start flight
7. start SPAD.neXt

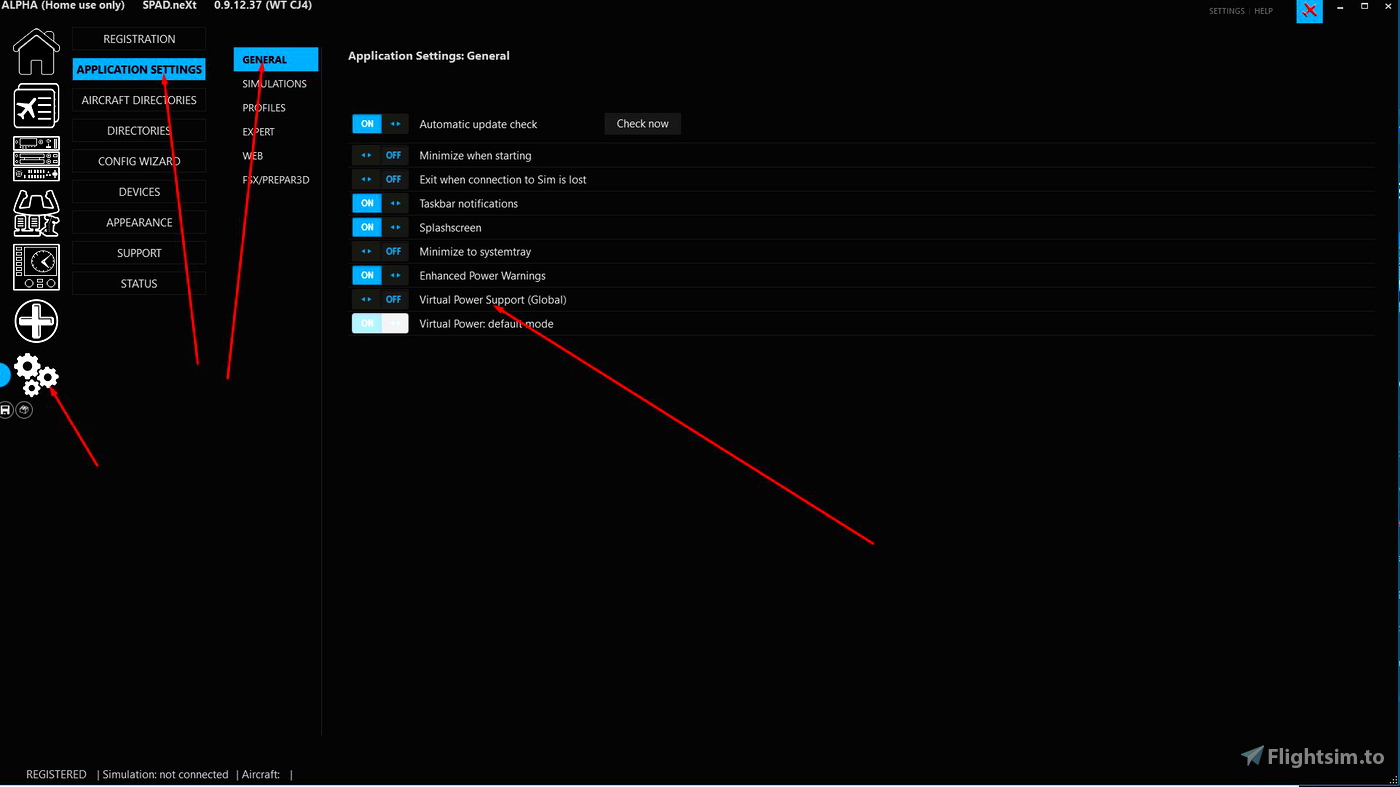

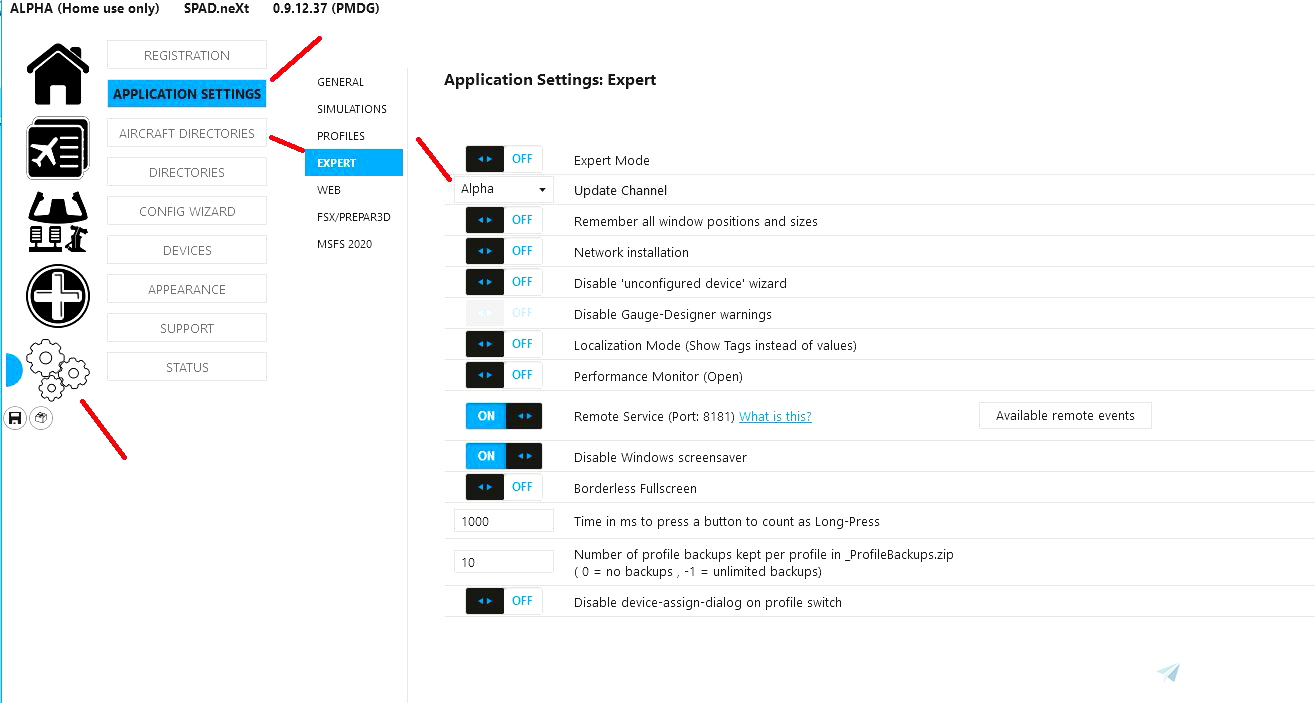

8. Make sure in SPAD.neXt
Settings->Application->FSX (SPAD.neXt 0.9.12 Alpha)
Settings->Application->Simulations (SPAD.neXt 0.9.11.5)
PMDG Support is enabled. (If it was not, enable it and restart SPAD.neXt)

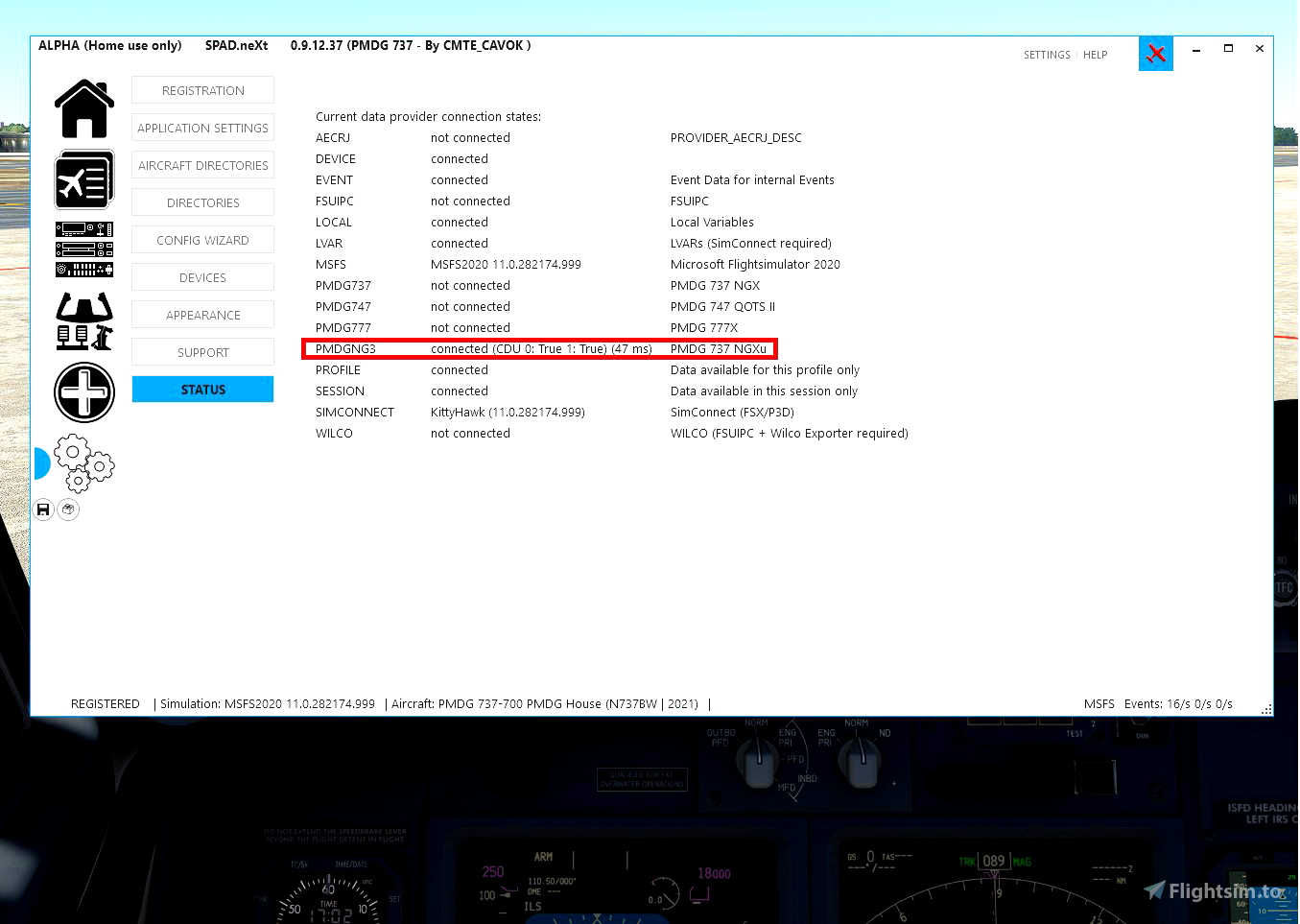

9. Always 3 green!
- All Data in "PMDG 737 NGXu" should be working
- All Simulation Events in "PMDG 737 NGXu" should be working.
- Cockpitmaster CDU should be working right away
P3D PMDG 737 NGXu SPAD.neXt Profiles should be working. (Not fully tested yet)
Please remember PMDG Simulation Events work exactly like the cockpit. Use the "PMDG Special Actions" to do with the event what you would do in cockpit with the mouse!
Feel free to suggest improvements and fixes!
ALT tab: Displays selected altitude and selected vertical speed. The Knob changes selected altitude by ft.
VS tab: Displays selected altitude and selected vertical speed. Knob changes selected vertical speed by ft.
IAS tab: Displays selected autothrottle speed. Knob changes selected speed by kt.
HDG tab: Displays selected heading. Knob changes selected heading by directional degrees
CRS tab: Displays selected course
*Knobs and Buttons
[AP]: Turns left autopilot ON/OFF
[HDG]: Turns heading mode ON/OFF
[NAV]: Turns ON/OFF button LNAV
[IAS]: Turns managed speed mode ON/OFF
[ALT]: Turns managed altitude mode
[VS]: Turns vertical speed mode ON/OFF
[APR]: Turns approach mode ON/OFF
[REV]: Turns ON/OFF button VNAV
[AUTO THROTTLE]: Turns autothrottle and flight director ON/OFF
- Active Short UP = increases range ND
- Active Short DN = reduces range ND
- UP = increases the brightness of lights (MCP, Overhead, Pedestal, EFIS...)
- DN = reduces the brightness of lights (MCP, Overhead, Pedestal, EFIS...)
Magnetos: Increases/decreases AUTO BREAk = OFF (OFF) R (RTO) L (2) BOTH (3) START (MAX)
Master Bat: ON/OFF - BAT + GPU
Master Alt: APU ON + START
Avionics Master: Turns all ADIRUs to the NAV position / Turns all ADIRUs to the OFF position
Fuel Pump: ON/OFF = SWITCHES PUMPS + HYD PUMPS (ELEC 2 - ELEC 1)
De-Ice: Switches "WING ANTI-ICE" and Switches "ENG ANTI-ICE" (Disconnect for a second windows heat and yaw damper)
Pitot Heat: ON/OFF Windows Heat - Probe Heat - YAW DAMPER (Seconds Delay)
Close Cowl: Switches: ON/OFF Dome Lights
Panel: Turns ON/OFF Overhead Light.
Beacon: ON/OFF Light Beacom
Nav: ON/OFF Light Nav
Strobe: TURNS ON = STROBE ON and NAV OFF
Strobe: TURNS OFF = STROBE OFF and NAV ON
Taxi: TURNS ON/OFF = Taxi Light and Wings
Landing: TURNS ON/OFF = Landing Light
- Green - Fully extended
- Yellow - Fully extended, but with airspeed equal to, or greater than 200 knots
- Red - Not fully extended
- Off - Retracted
Landing Gear Lever:Controls landing gear lever position
NAV1, NAV2, COM1 and COM2: STANDARD usability
[ADF]: Shows ADF1 and ADF2 at the same time (ADF1 on the left and ADF2 on the right)
[DME]: Shows a distance from NAV1 on the left side and the NAV2 on the right side
- Left Display - By turning the knob, it is possible to change the QNH, according to the EFIS operation.
- Right display - Turning the knob, it is possible to change the TRANSPONDER, according to the PEDESTAL operation.
- ACT/STBY- Long press to switch between QNH or QNE (STD).
IF MY WORK LIKES YOU, PLEASE LEAVE A POSITIVE COMMENT!!!
