AXIS and OHs Scripts to use for VRinsight MCP Combo II with templates
Here is a new template and script to make perfect use of your VRinsight MCP Combo II. You will need AAO and the AAO VRinsight MCP Combo II Bridge. Get it from here.
The following profiles are provided:
FBW A320
- A320 MCP II.tmpl (import in AAO for button assignements)
- A320-VRiBridge.txt (for your convinience codes for displays in txt format)
- AAO_VRI_Bridge_DisplayProfiles.xml (import in AAO Bridge via import function)
- A320NXScripts.xml (import in AAO ->scripting->import scripts)
Due to different Vars and for update reasons I had to make an extra Upload for the A330 headwind which you can find here. Scripts for AAO are provided also in this archive.

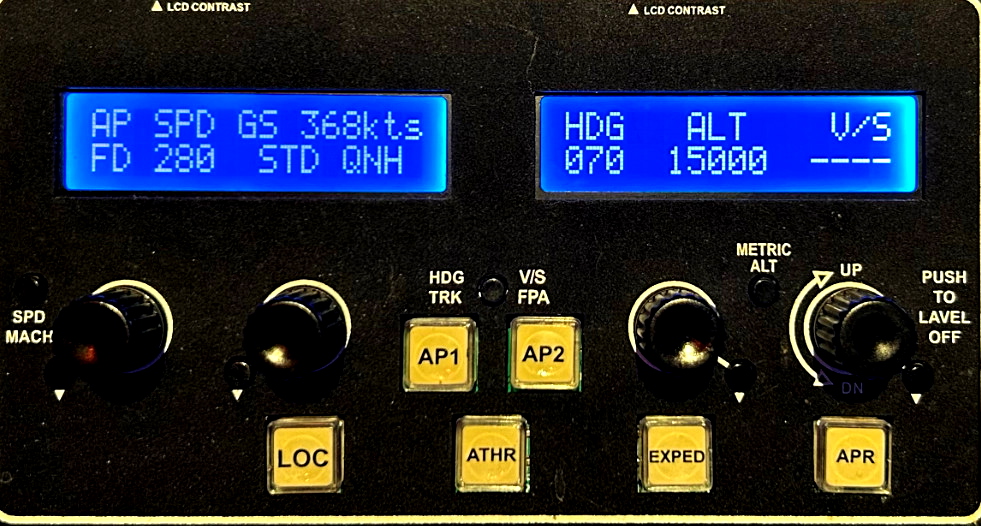

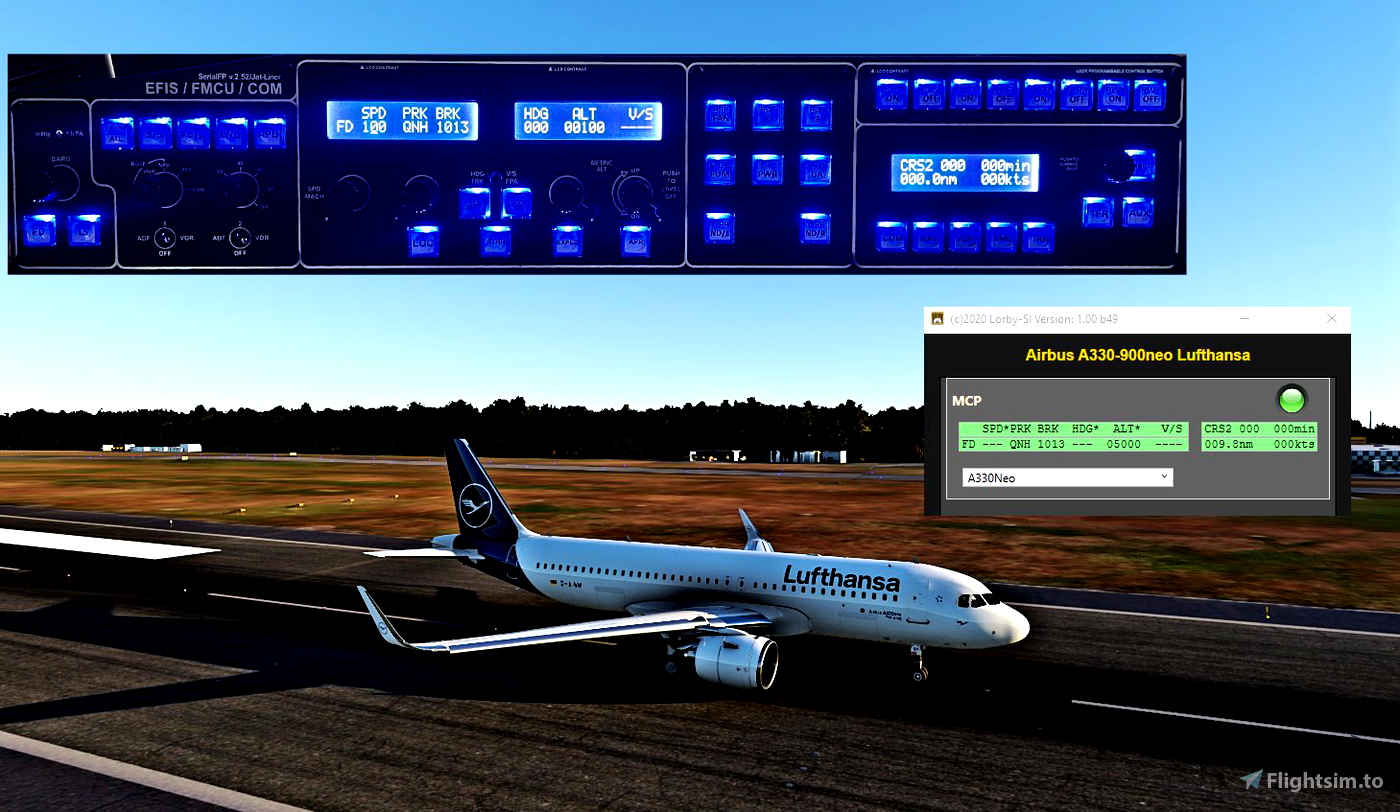

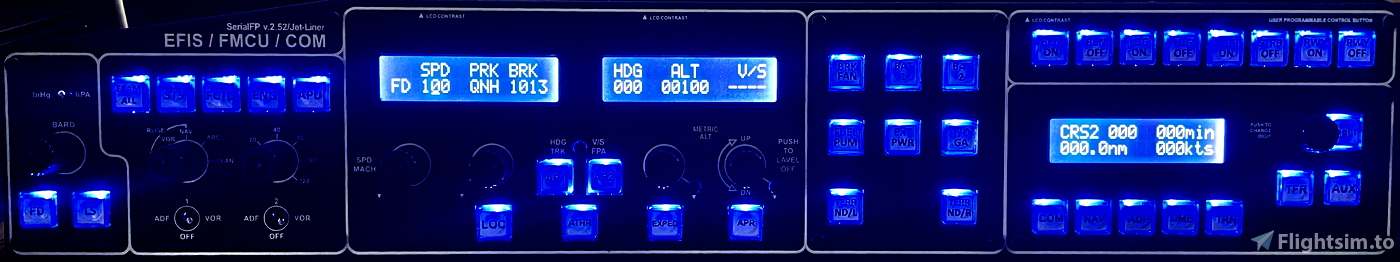

With this template you get full control with the MCP Combo and complete LCD readouts for your FCU. Now with complete SPD/MACH, V/S-FPA readouts and more...
All assignments could be changed also of course. For importing templates and change assignments, please consult the AAO manual!
ADDITIONAL MAIN DISPLAYS:

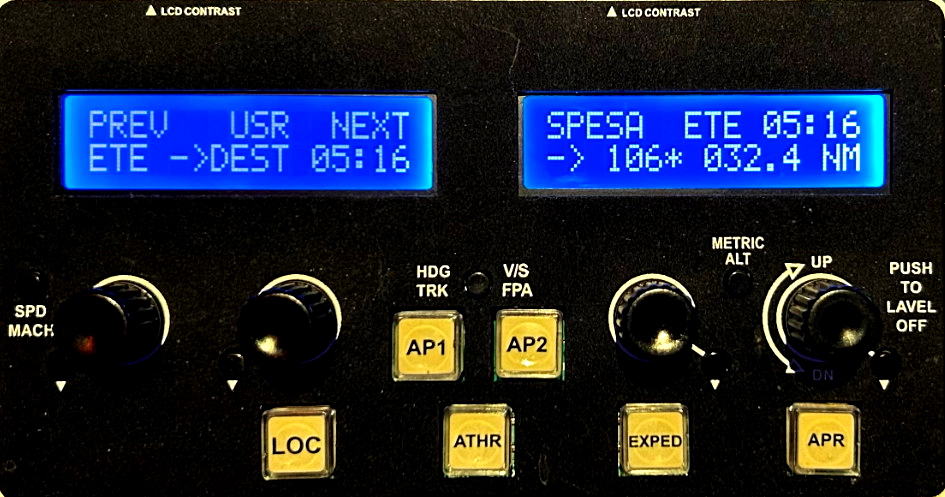

FBW A320 FLIGHTPLAN INFO:
Indication of PREVIOUS Waypoint
Indication of NEXT Waypoint with ETE, Distance and Bearing
Indication of ETE to DESTINATION

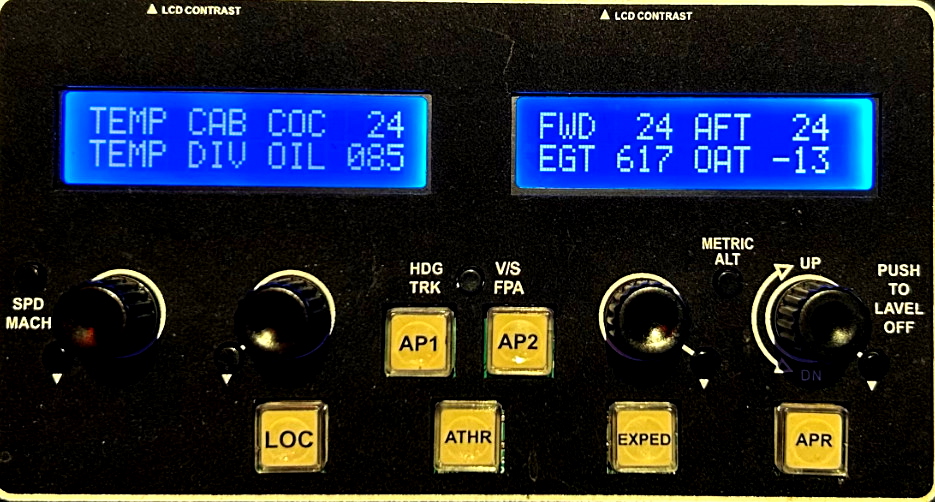

FBW A320 TEMPERATURE DISPLAYS:
Indication of TEMPERATURES of Cockpit, Cabin FWD, Cabin AFT
Indication of TEMPERATURES of Oil, EGT, OAT
FREQUENCY DISPLAYS:

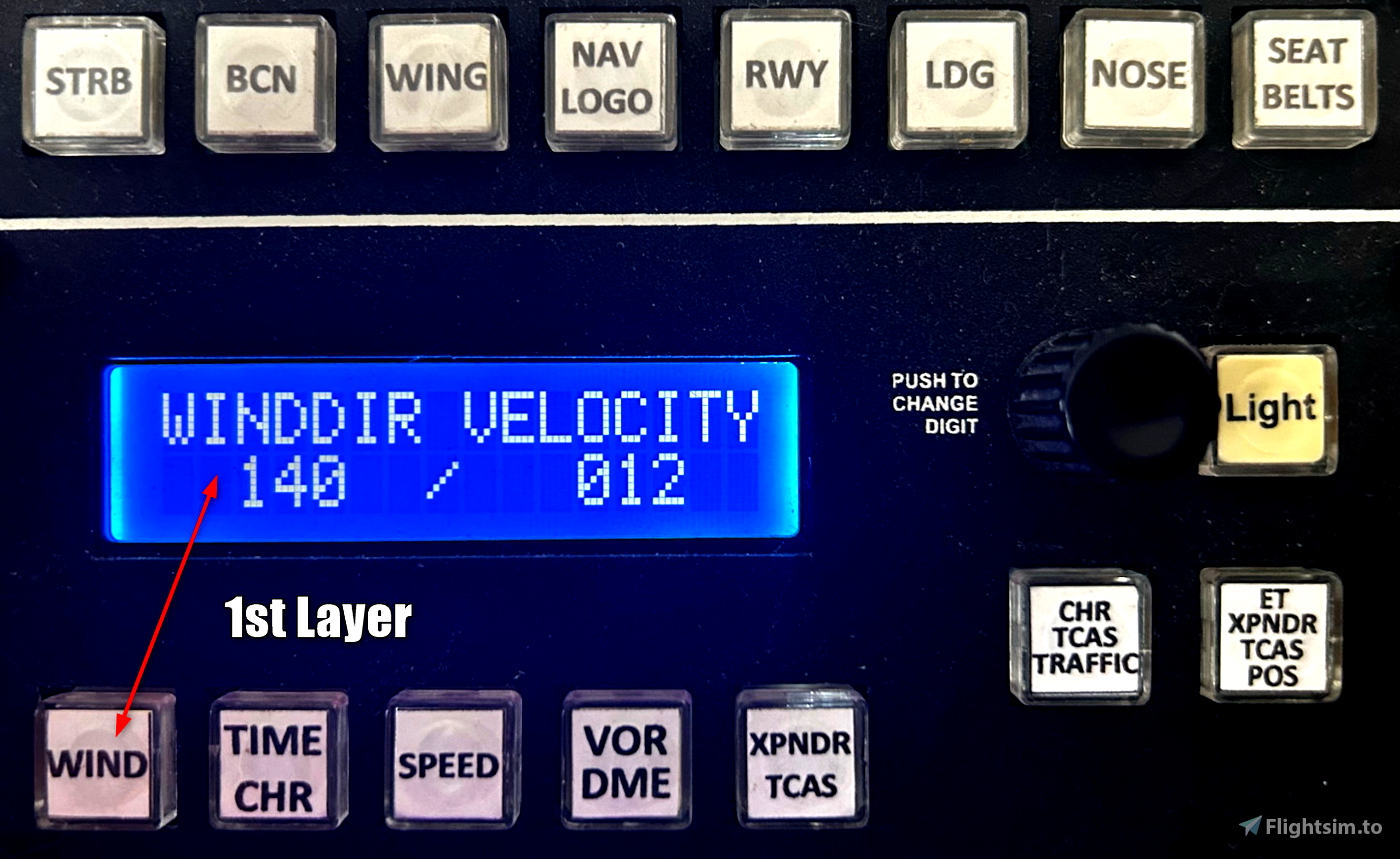

COM: 1st Layer-WINDDIR/VELOCITY

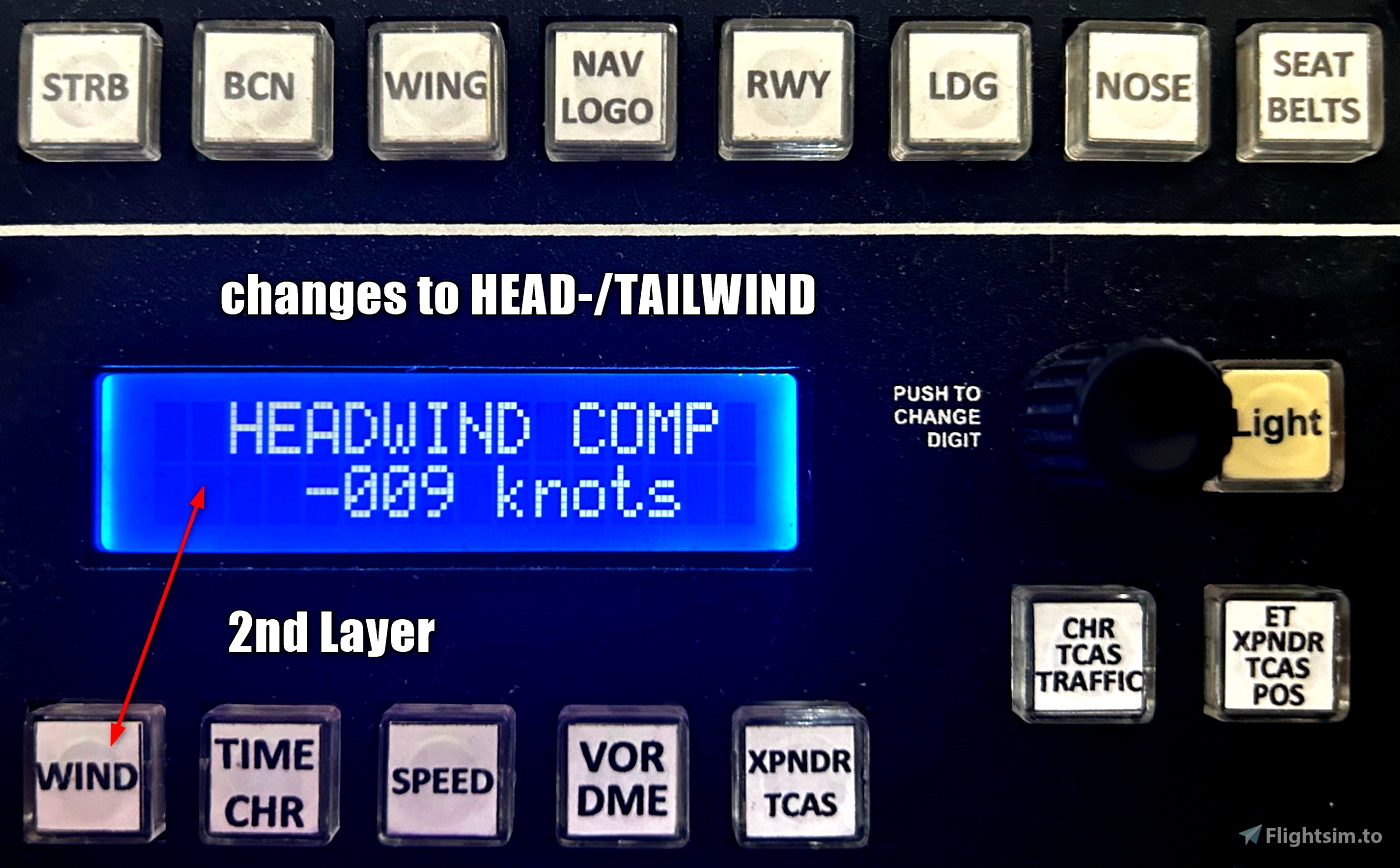

2nd Layer-HEAD-/TAILWIND COMP (changes accordingly)
NAV: 1st Layer-TIME ZONES
2nd Layer-CHRONO und ET (FBW)
Start/Stop via TFR/AUX ("R" indicates RUN)
Reset with Rotary (left or right turn, choose with PUSH function (Cursor) )

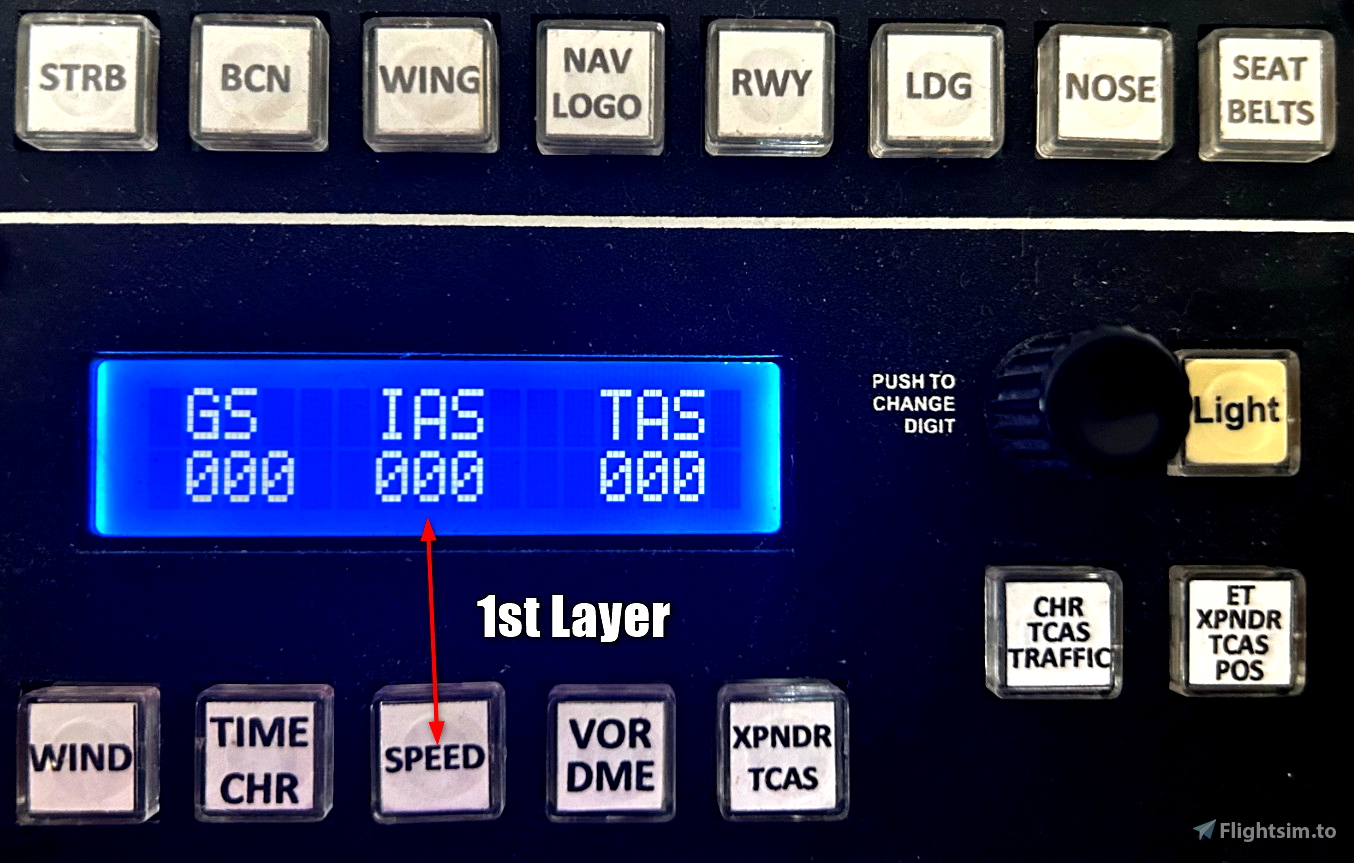

ADF: 1st Layer-INDICATION GS/IAS und TAS

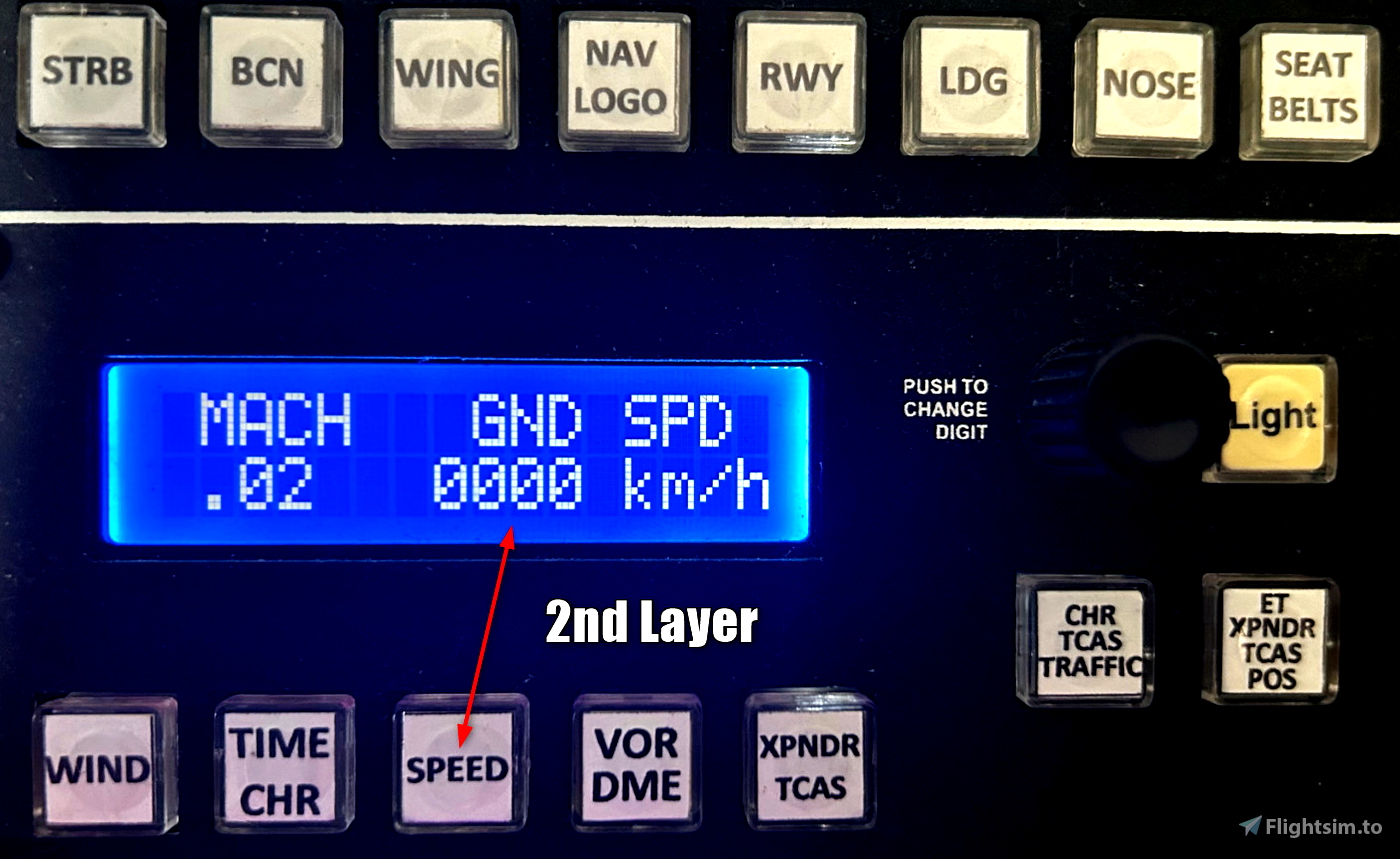

2nd Layer-INDICATION MACH/GND SPEED in km/h
DME: 1st Layer-VOR 1 with NAME CODE, DIRECTION, DISTANCE and TIME to VOR

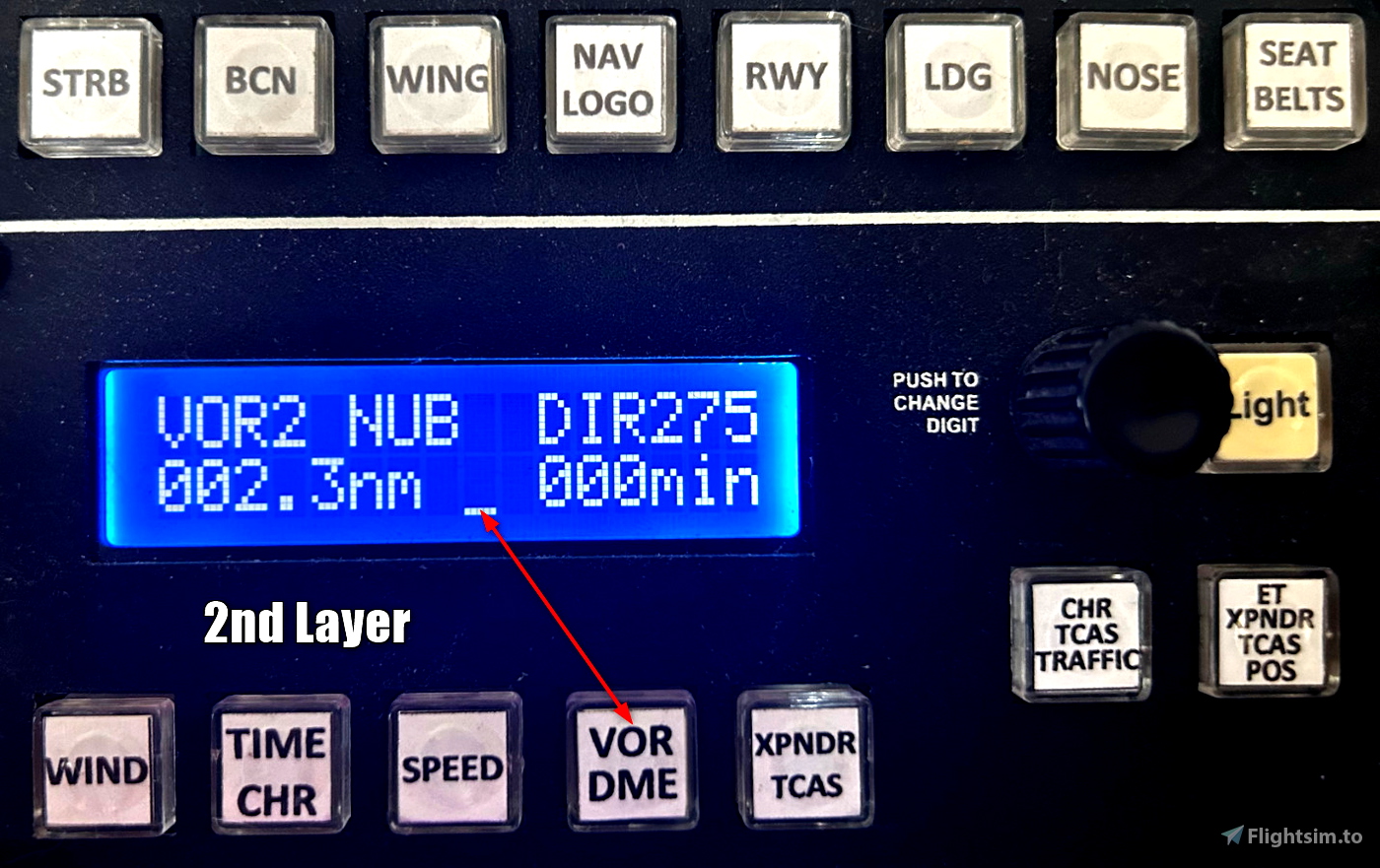

2nd Layer-VOR 2 with NAME CODE, DIRECTION, DISTANCE and TIME to VOR

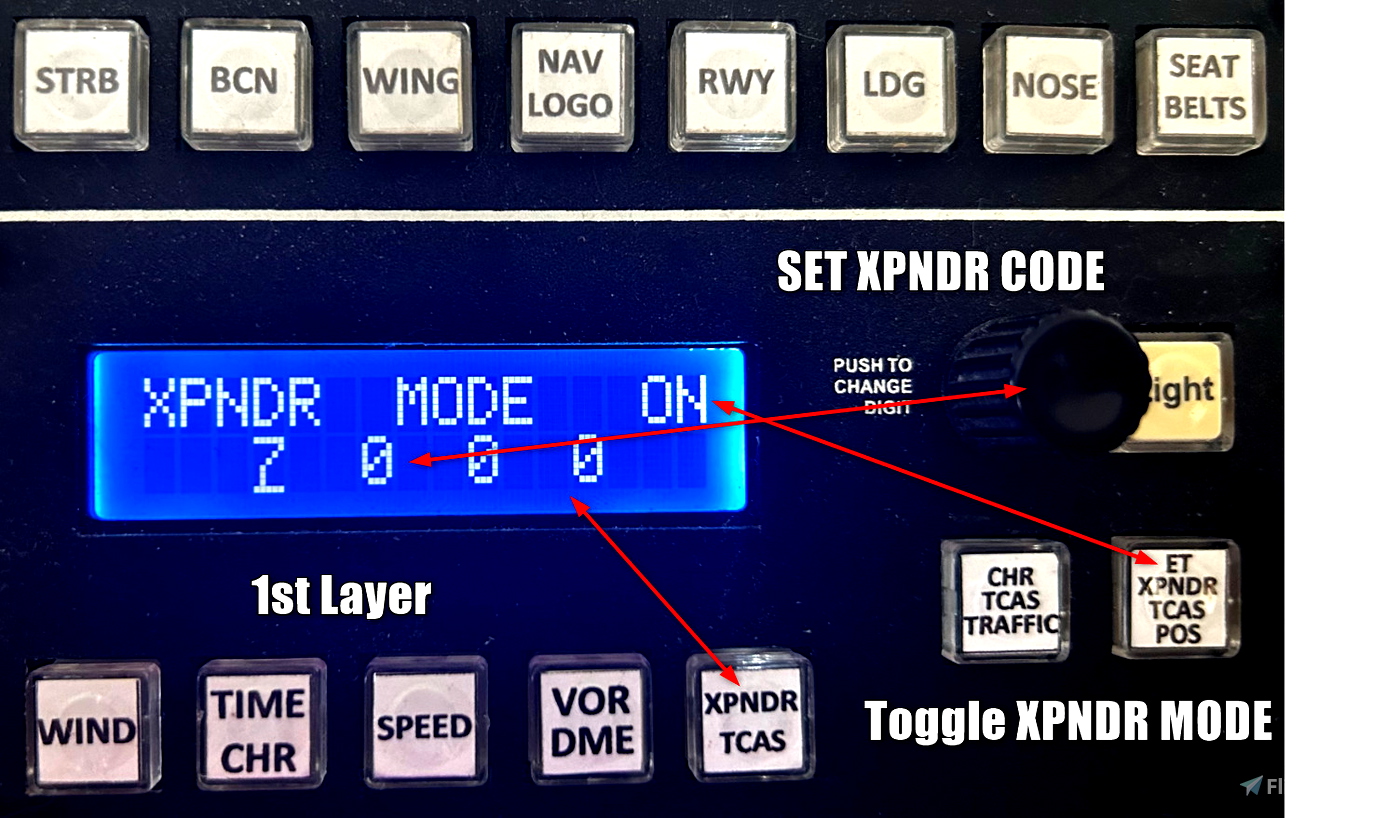

TRN: 1st Layer-TRANSPONDER CODE and MODE (change MODE via AUX, CODE via ROTARY)

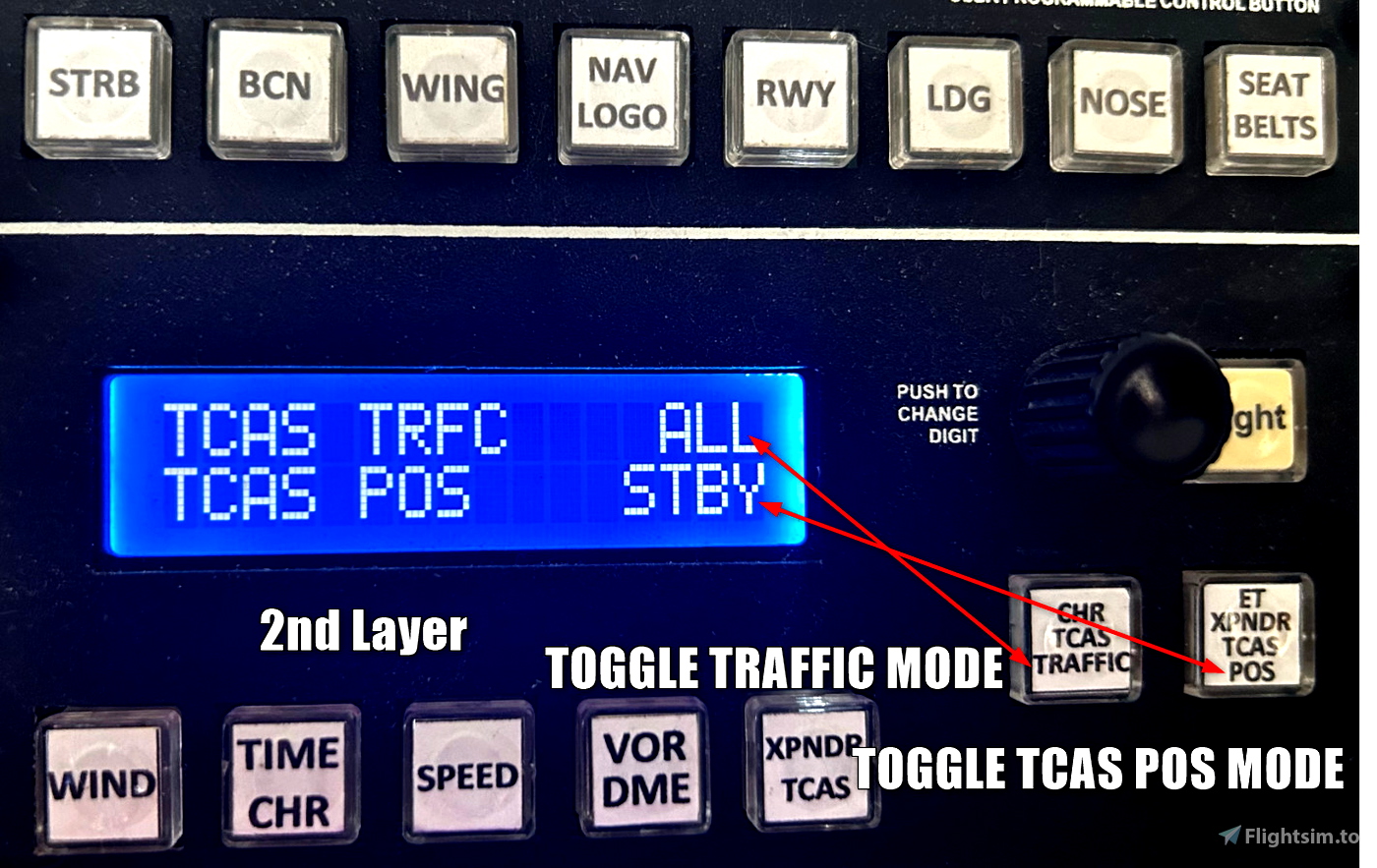

2nd Layer-TCAS TRAFFIC and TCAS POS (change MODE via TFR and AUX)
You can assign a button on the MCP (or your Streamdeck, Joystick etc.) where you will be able to toggle through the different screens by assigning AAO_VRI_TOGGLE_PAGE (found under Simulator Event/AAO VRI Bridge). See also VRI Bridge Manual !
ATTENTION:
Due to your device might have a different hardware ID in AAO than that device it was created on, you have to change all assignments to your device. Therefore just doubleclick on each assigned button and change ONLY the input to your devices respective button/switch !!!!
For questions just join my discord server as there it is much easier to help and support you. Please send comments and suggestions and also consider a donation to keep up the work. Thank you and enjoy!
Discord server: https://discord.gg/9gZj5Ec6nj
YouTube: https://www.youtube.com/@ChrisPUA320
2 months ago
uwiuke
is there have any update on fenix?
8 months ago
This profile is for the FBW ONLY! Since of programming restrictions with the FENIX 320 there will be NO profile.
8 months ago
Chris_PU_A320
jungmoonsung1
Hello. Does anyone know if any update was released that allows you to see the screens working correctly with the Fenix A320 in Vrinsight MCP Combo II?
Thanks
1 years ago
There are no Vars to show ALT, SPD, VS and HDG from the Fenix on the MCP unfortunately.
1 years ago
Chris_PU_A320
jftejeiro
Would there be a way to use this with Fenix A320?
1 years ago
It might be possible, but since I don’t own the Fenix I can’t check for now…
1 years ago
Chris_PU_A320
Tezbedz
Hello,
Are you going to release a StreamDeck profile for the PMDG 737 and Fenix A320?
2 years ago
Hi, the profile for the PMDG 737 is in the works right now. I am planning to release it by the end of the week...no plans for FENIX yet, but maybe in the future
2 years ago
Chris_PU_A320
henriquekibe
I have version 2.11b17 of Axis and Oh
2 years ago
You need to update your software to the latest versions anyways (yours is out of date). AAO is 2.30b17 I think and the latest bridge version to 1.00b55. I can’t tell if it works with your version of hardware as I have the combo II. You have to try…
2 years ago
Chris_PU_A320
MartyF909
I own the MCP Combo I can I use it's files with? If so how do I install and use them to operate my Combo?
2 years ago
MartyF909
