Note from the author: Please upvote https://forums.flightsimulator.com/t/workaround-for-missing-propeller-drag-please/368300
This is no livery, this is a flight model mod. The idea is to make the flight behavior more realistic. The most important detail is a realistic maximum lift-drag ratio (L/D)max. This one change makes many other changes necessary. The second detail is I use gear and flaps drag to have a work around for missing propeller drag and ground effect. Now you can flare your airplane before touch-down.
See http://www.andreadrian.de/FS_2020_sailplanes/ for more of my work for MSFS 2020:
Gliders: SG-38, Aircreations 582SL
Sailplanes: DG-808S, Ka 6E, ASK23
Trainer: Tiger Moth
Seaplane: Grumman Goose G21A
Warbirds: Fokker Dr1, North American P-51D
Flight model modification version 1.14.5.0, date 2021-03-12:

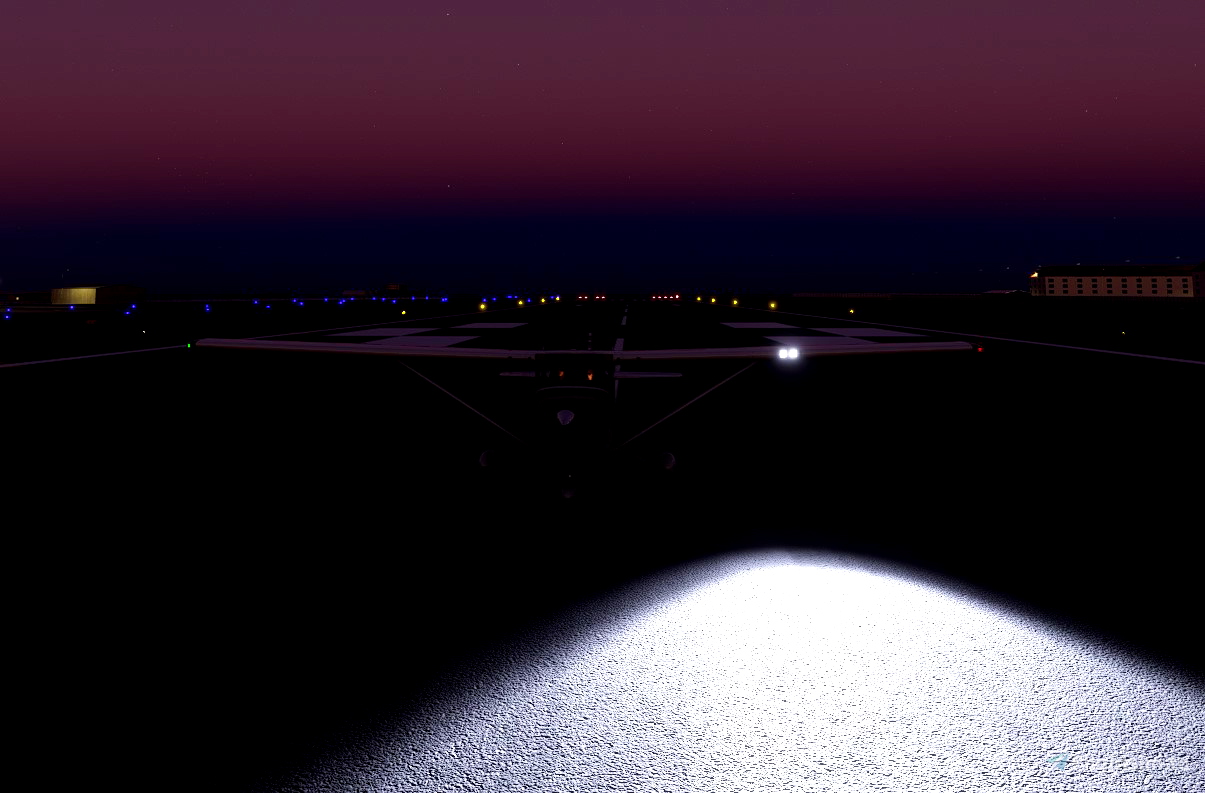

I included "Uwa's lighting mods" from https://uwajimaya.github.io/FS2020/
Uwajimaya, I credit your work!
Pack version 1.13 (Feb 16, 2021)
The NASA book "Quest for Performance: The Evolution of Modern Aircraft" tells about the C172 Skyhawk: "The zero-lift drag coefficient CD,0 of the Skyhawk is 0.0319 as compared with 0.0358 for the Cherokee, and the maximum lift-drag ratios (L/D)max for the two aircraft are 11.6 and 10.0, respectively."
This flight level mod sets (L/D)max to 80% of the real life value. This is part of the "missing propeller drag" workaround. For (L/D)max see https://code7700.com/aero_l_over_d_max.htm
Using the parameters drag_coef_zero_lift, htail_incidence, thrust_scalar and fuel_flow_scalar the maximum airspeed, (L/D)max and fuel consumption can be set to one operating point OP. I set the OP to no flaps, retracted landing gear, full thrust, level flight, no elevator input and altitude 10000 ft.
I use the MSFS 2020 documentation from https://docs.flightsimulator.com/html/Samples_And_Tutorials/Defining_A_Flight_Model.htm Citations are in "". Asobo has expanded the documentation, but sadly the documentation is still far away from complete. Asobo please go on!
To all critics of my work: First, I am an armchair pilot. If you only accept flight model mods from real life 4 stars pilots, don't use it. Second, if you think my mod is atrocious, don't use it. To everybody else: The mod is the best I can do with my knowledge of MSFS 2020. Stay happy and healthy!
lift_coef_flaps = 0.33790
Undo "Flight dynamics bug" workaround.
wing_incidence = 1.5 ; Wing incidence (DEGREES)
htail_incidence = 1.8 ; 1 ; Horizontal tail incidence (DEGREES)
"You'll want to leave the horizontal tail Incidence at zero for the moment, this value will be used to set the default trim of the aircraft."
Trimmed for OP with no elevator input.
elevator_trim_neutral = 0 ; 1 ; Elevator trim max angle (absolute value) (DEGREES), for indicators only (no influence on flight model)
I want to have the green area in the middle of VSI.
drag_coef_zero_lift = 0.0520 ; 0.03270
"this value is usually of around 0.02 to 0.025 for an aircraft with a glide ratio above 15, 0.03 to 0.04 for aircraft with glide ratios of about 10, and up to 0.1 for some slow bush planes with very low glide ratios."
I use Aircraft Editor, Debug, Sim Polar VhVs to set (L/D)max (glide ratio) to a realistic value "within the limitations of MSFS 2020". The chosen value is 80% of real life (L/D)max because I use drag_coef_zero_lift as "missing propeller drag" workaround.
drag_coef_flaps = 0.1 ; 0.04700
I use drag_coef_flaps as "missing propeller drag" workaround, too.
[PROPELLER]
thrust_scalar = 1.7 ; 1.15 ; Propeller thrust scalar
Change in drag_coef_zero_lift needs change in thrust_scalar for the same cruise_speed.
ui_autonomy = 5 ; max duration the aircraft can fly between take-off and landing in (Hrs)
fuel_flow_scalar = 0.70 ; 0.88 ; Fuel flow scalar
Change in thrust_scalar needs change in fuel_flow_scalar for the same ui_autonomy. I use 80% LVR on ground to set fuel_flow_scalar.
toe_brakes_scale = 1 ; 0.66 ; Brake scalar
More thrust_scalar needs more toe_brakes_scale to hold airplane still on ground at thrust tests.
pitch_stability = 0.04 ; 0.1
roll_stability = 0.04 ; 0.1
yaw_stability = 0.04 ; 0.1
"You need to enter a value that is higher than zero for backwards compatibility with the legacy flight model, and you can enter 0.01 - for example - if you want only the minimum friction. If the plane has more inertia, you can enter higher values."
flaps-position.0 = 0, -1, 0
flaps-position.1 = 10, -1, 1 ; 10, -1, 0.5
flaps-position.2 = 20, -1, 1 ; 20, -1, 0.75
flaps-position.3 = 30, -1, 1
flaps-position drag depends on flaps angle. Therefore a drag multiplier of 1 is good enough.
"AIRCRAFT.UI_MODEL": "Cessna 172 Skyhawk (G1000)",
[FLTSIM.0]
title = "Cessna Skyhawk G1000 Asobo" ; Variation name
Use original aircraft selector name and title again for bush trips and other tasks that need specific airplanes.
Summary: "If Asobo only knew what Asobo knows". Some Asobo engineers write documentation and tell everybody what to do and why. Other Asobo engineers write cfg files. As you can see above, these two groups don't talk to each other. Specially not about the stability parameters. The C172 is one of the best Asobo models. I found little to change!
Nowhere Asobo writes about the importance of (L/D)max (glide ratio) and how to set a proper (L/D)max. For me is a bad (L/D)max value the single most important reason for poor quality of (Asobo) flight models. Let's see what Asobo will do in the next software release!
