C-172 Profile for Streamdeck XL (need LORBYs Axis And OHs SD plugin)
To run this you need to have AAOs plugin installed on your StreamDeck. Get it from here (look for "Plugin for the Elgato Stream Deck"). Also get the FlightTracker Plugin.
It is for the XL version (32 buttons) ONLY!
Features in this profile:

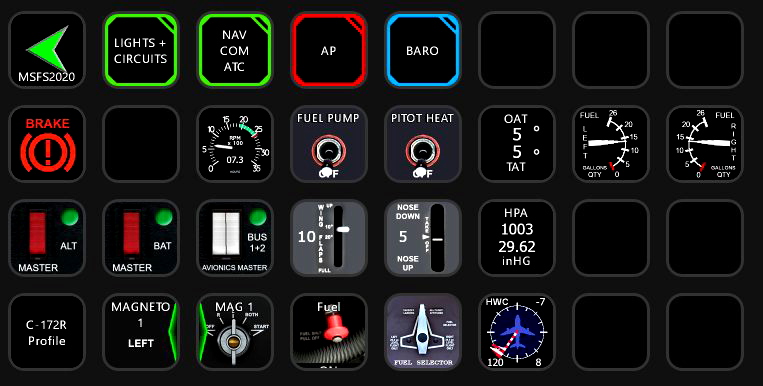

- Main Page (almost everything fits on here)

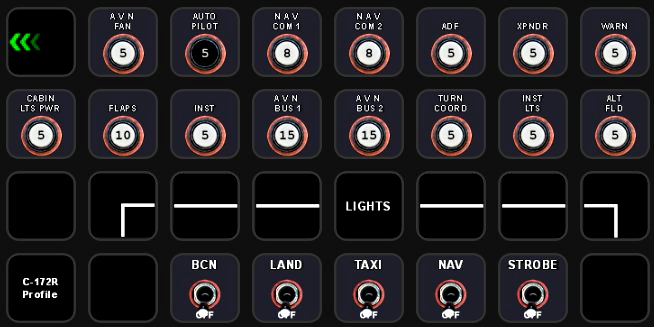

- Lights and Circuits Page

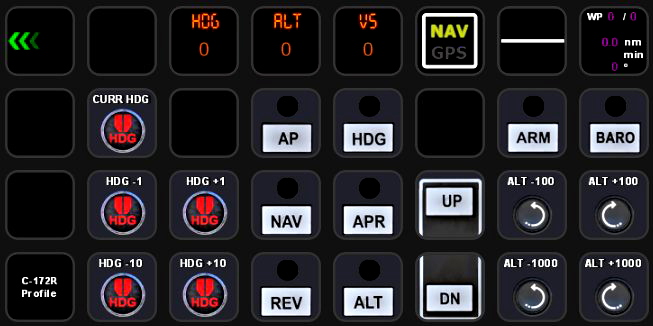

- Autopilot Page

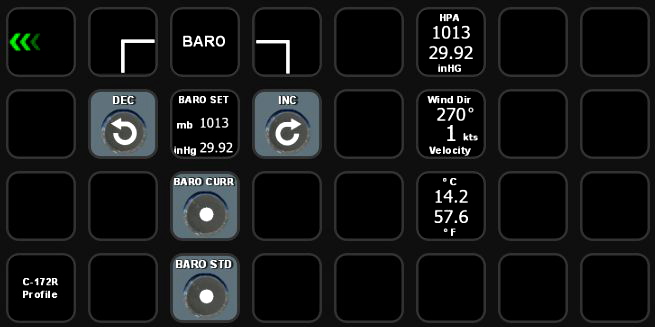

- Baro Page
- COM/NAV/ATC Page

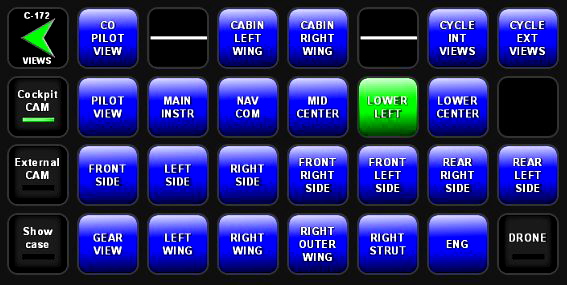

- Views Page
Tested and works with the Asobo Cessna 172 standard version (NOT the G1000 version). It might be possible that you have to adjust certain functions to your specific setup (especially Pilot View settings as this uses saved view on ALT-1). If help is needed just drop a line in the comments or join my discord server for support.
Installation:
First make sure that you have the AAO SD and the Flighttracker plugin installed. Import scripts C172.xml into AAO.
Then just double click on the profiles provided in this download
- Cessna172R.streamDeckProfile
- CESSNA 172 VIEWS.streamDeckProfile
If you find some bugs, need some help or have some suggestions just let me know and drop a comment. If you like this work then consider a small donation as this is a very time consuming work and will keep up the updates and further development.
Credit: Thank you for Guenseli for his awesome work. Usage and upload permition granted by the author!
Chris_PU_A320
Great plugin and use of features in both the AAO and Flight Tracker plugins for the Stream Deck!
For anyone having trouble getting some of the controls like the glareshield and other dimmable lights working, here are some steps that worked for me:
1) Close Stream Deck Completely -- Right-click its system tray icon and choose "Quit Stream Deck". Its display should go to just a big Stream Deck logo.
2) In AAO -- Go to Tools > Port Settings for Web
3) Set the WebAPI Port to a number you want; changing it from the default 9080 seems to help. Try 8085, 9081 -- just something else if it's not working now.
4) Click "Apply"; this will automatically change the Stream Deck plugin's port setting and get it synced up with AAO. Don't restart the Stream Deck software yet!
5) In AAO -- Go to Tools > Set WebAPI Port for AAO Addons
3) In the window that pops up, you'll see a list of WebAPI plugins and devices -- at minimum it should list "Stream Deck Plugin" and "lorbysi-content-fippanel".
4) Do all the items in the list show the same port? Yes--Everything should be working. NO--Make sure all items have their box ticked, and then click the "Set Port" button.
5) Click "Apply" and then close the window.
6) Quit AAO completely.
7) Launch AAO and the Stream Deck software.
8) Launch MSFS and start a flight anywhere; you just want to be in the cockpit.
9) Open the menu, click the gear icon and make sure the in-game Lorby FIP is enabled. You might have to toggle it off and on to make the box appear -- when it does, it should have a white border, or the red border will momentarily show and then go white. You can then close the blank in-game FIP window. The Stream Deck and AAO scripting are now on the same port and can work together.
Now... if only the BVars for the overhead lights could be found, they could be scripted like the others and then all the lights in the 152 could be controlled! 😄
11 months ago
UnseenCat
I'm trying your C172 Streamdeck profile which is very good. I am having one problem though. I can't get the Glareshield Lights and Pedestal Lights buttons working. The Radio Lights and Panel Lights do work however. I had tried to get the Glareshield Lights and Pedestal Lights working in the past and could not. They do work by turning the on screen knobs with the mouse. AAO plug in and scripts are all in place and up to date. Are these lights working for you?
11 months ago
I will check for it and let you know…
11 months ago
